Refurbished 2024 TOS W100A

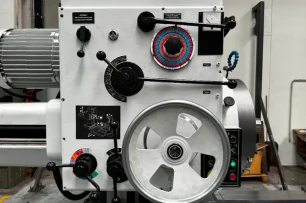

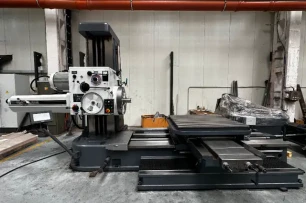

REFURBISHED manual table-type TOS W 100A HBM.

BASIC SCOPE OF REFURBISHMENT!

• 4 or 5-axes DRO (X,Y,Z,W + B-axis Encoder)

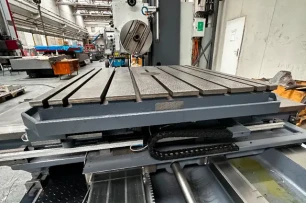

• Table surface reground

• New Wipers on All Axes

• New Cable Carriers

• All New Control Labels

• New Metal Covers

• New Paint Job of the Machine and Its Accessories

• Mechanically & Electrically tested and proven

DETAILS ON REQUEST!

Technical specification:

	units	TOS W100A
Table Travel - X-Axis	in \| mm	63 \| 1 600
Headstock Travel - Y-Axis	in \| mm	43 \| 1 092
Column Travel - Z-Axis	in \| mm	49 \| 1 245
Spindle Travel - W-Axis	in \| mm	35.4 \| 899
Spindle Diameter	in \| mm	4 \| 102
Spindle Taper	ISO 50
Spindle Speed	rpm	71 - 1 120
Build In Facing Head Diameter	in\| mm	23 \| 584
Build In Power Rotary Table	in \| mm	49 x 49 \| 1 245 x 1 245
Max. Table Load	lbs \| ton	6 614 \| 3
Remanufactured	2024
AVAILABLE FROM:	NOW
