Used & rebuilt machines

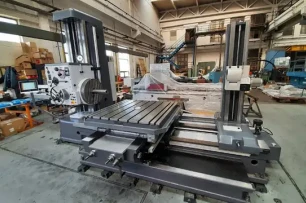

Completely re-manufactured TOS W 100A Horizontal Boring Mill
Soon in Toronto
Available Soon
Re-manufactured manual table-type TOS W 100A HBM equipped with 5 Axis DRO Heidenhain, Hydraulic Tool Clamping and Tailstock.
- Warranty
- Delivery
- Installation
| units | TOS W100A | |
| Table Travel - X-Axis | in | mm | 63 | 1 600 |
| Headstock Travel - Y-Axis | in | mm | 43 | 1 092 |
| Column Travel - Z-Axis | in | mm | 49 | 1 245 |
| Spindle Travel - W-Axis | in | mm | 35.4 | 899 |
| Spindle Diameter | in | mm | 4 | 100 |
| Spindle Taper | ISO 50 | |
| Spindle Speed | rpm | 71 - 1 120 |

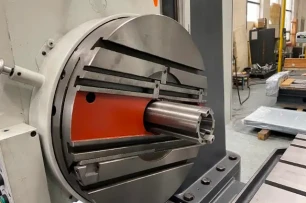

| Build In Facing Head Diameter | in| mm | 23 | 584 |
| Build In Power Rotary Table | in | mm | 49 x 49 | 1 245 x 1 245 |
| Max. Table Load | lbs | ton | 6 614 | 3 |
| Rebuilt | 2024 | |
| AVAILABLE FROM: | SEPTEMBER 2024 | |
