Angle Heads and Facing Heads
Automatic C-axis 0.001°
Manual heads are typically positioned manually, after screws that keep the head in position, are released. This restriction can be removed by adding an adapter - automatically positioned C-axis - between headstock and the milling head. Therefore manual head becomes automatic, where positioning of C-axis is faster and more accurate.
- this adapter is suitable for all types of headstocks.
- indexing by 0,001°
- automatic positioning by servo motor
- range of C-axis ± 180°
- clamping force of brake 3000/3427 Nm
- sensor accuracy ±3,8’’
- max. torque 830/976 Nm
- max. speed 8,5/7,3 rpm
- automatic or manual clamping on headstock

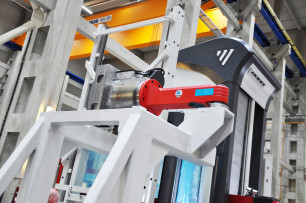

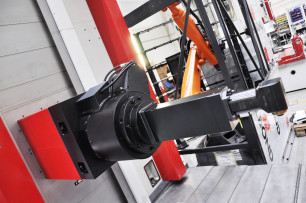

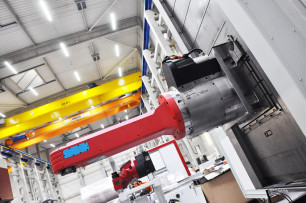

Gallery
