Automatic Changing Systems of Tools and Heads
ATC 20/32/40/60/90/120
ATC – automatic tool changer is one of the possibilities of how to automatically change tools into spindle on FERMAT machines.
The ATC can store 20/32/40/60/80/90/120 tools in the magazine.
Depending on the version, the ATC can change tool into spindle of headstock (horizontal exchange), or into spindle of automatic milling head in zero position (vertical exchange).
| Parameters of ATC | |
| Max. tool weight | 25 kg |
| Max. weight of all the tools in magazine | 600 kg |
| Max. tool diameter – every pocket full
|
125 mm |
| Max. tool diameter – every other pocket empty | 250 mm |
| Max. tool length | 400 mm |
| Spindle taper
|
DIN 50, CAT 50, BT 50 |

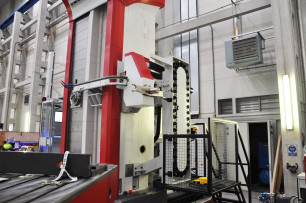

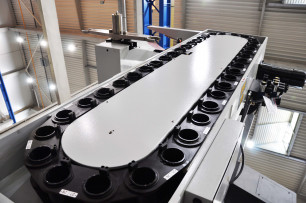

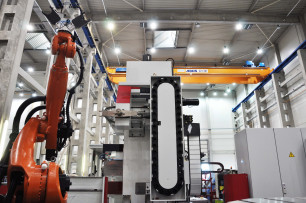

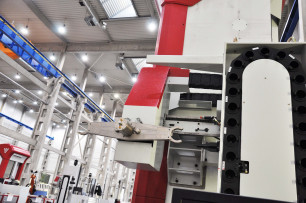

Gallery
