WFT 11 Horizontal boring mill
The WFT 11 is medium size table-type horizontal boring mill, with longitudinal travel of the column and cross-wise travel of the table. Designed for machining of workpieces of up to 10 tons.
| Parameter
|
units |
|
| Table travel - X-axis
|
mm | 3000 |
| Headstock travel - Y-axis
|
mm | 2000 |
| Column travel - Z-axis
|
mm | 1250 |
| Spindle travel - W-axis
|
mm | 730 |
| Spindle diameter
|
mm | 110 |
| Max. spindle speed
|
rpm | 4000 |
| Table plate size
|
mm | 1400x1800 |
| Table load
|
kg | 10000 |
| Max. power
|
kW | 31 |
| 53Max. torque
|
Nm | 1416 |
| Control system
|
HH 640 | |

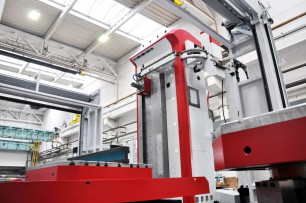

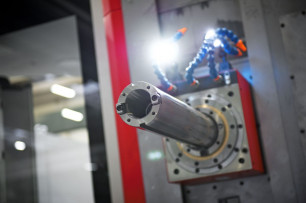

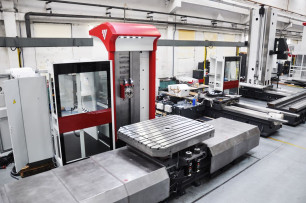

Gallery
